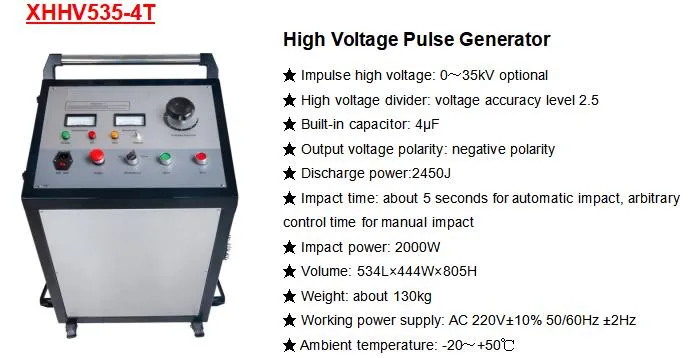

Xhhv535-4t Factory Supply Trolley Surge Generator 0-35kv High-Voltage Pulse Generator 2048j

Q: What is the XHHV535-4T high voltage surge generator?

A: The XHHV535-4T high voltage surge generator is a high-end experimental instrument that integrates a DC high voltage source, energy storage capacitor, discharge ball device, automatic discharge device, and a cart.

Q: What problems does this instrument solve?

A: It completely resolves the issues of convenience, portability, safety, and reliability that are commonly encountered with traditional experimental devices.

Q: How does it achieve its structural simplicity?

A: The instrument uses high-precision, high-stability special high-voltage electronic components and high-frequency high-voltage technology, resulting in a simple structure.

Q: What design features does it have for user convenience?

A: To retain the familiarity of users with transformers and operating boxes, the generator adopts a humanized design operation mode and integrates a micro-reliable circuit design, ensuring safety, reliability, and intuitiveness.

Q: What functions does this instrument offer?

A: It effectively prevents damage from impact and includes functions for automatic timing impact, manual impact, and withstand voltage.

Generates surge and DC voltage Suitable for the following methods in combination with optional devices:
★TDR Time Domain Reflectometry
★ARC reflection method and Impulse Current Method.
★Acoustic ground fault pin-pointing
★Continuous Mode included.

Multiple working mode's such as:
Single surge used for fault distance measuring
Cycle surge used for fault pinpointing
DC surge used for flashover cable fault

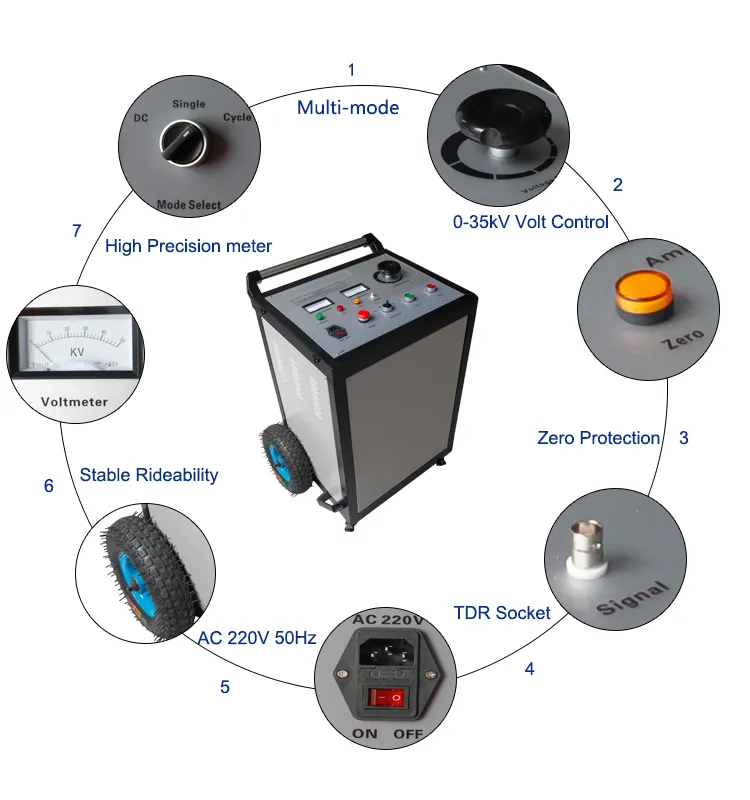

★ High-voltage pulse output is uniform and controllable;
★ With double 1.5-level pointer meter display of current and voltage, it is intuitive and clear, and the impact discharge process is clear at a glance;
★ High-voltage side voltage measurement, real-time and accurate;
★ With zero start protection function, safe and reliable;
★ Unique high-voltage measurement design, in the stop state, it will automatically discharge the internal capacitance of the device;
★ The discharge time can be selected in two modes: timing and manual;
★ With DC withstand voltage function;
★ Internally installed high-precision test cable fault sampling waveform module;
★ Humanized design trolley, easy to move.
