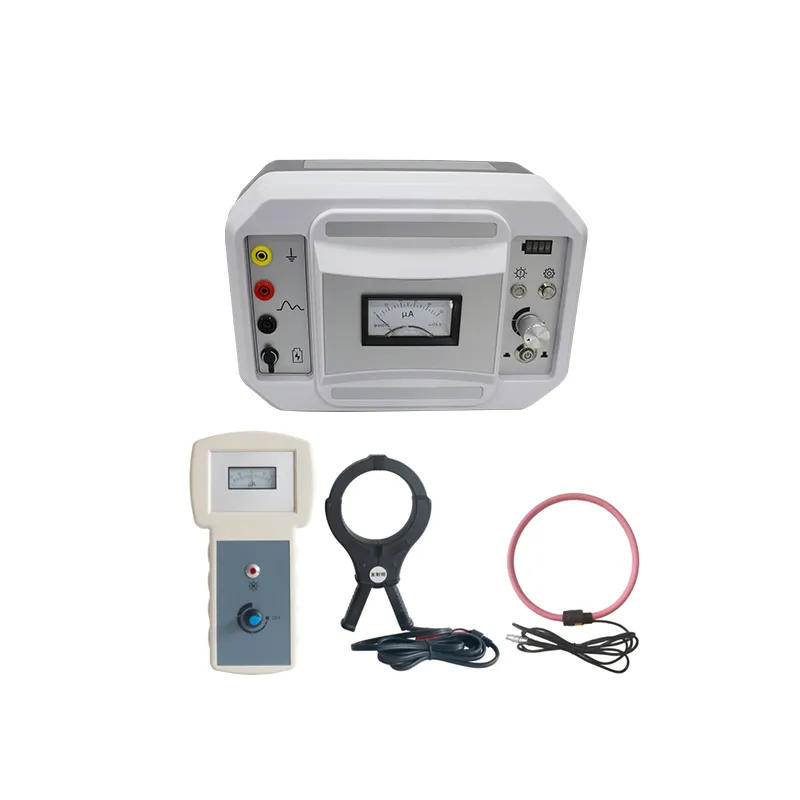

XHSB505B live cable identifier is developed by referring to foreign advanced technology and using modern electronic technology and tool technology under the guidance of electromagnetic field theory according to a number of cable field identification problems urgently needed to be solved by high-voltage cable construction, installation and maintenance personnel.
In power cable laying, migration, maintenance, troubleshooting and other field operations often encounter a very difficult problem: which cable is we are looking for? Especially in many cable channels of the same specification, the construction personnel are helpless. This device can quickly and accurately help you solve this problem.
Your logo can be put on the panel of the equipment.Each equipment got a series number.
Features:
Accurate identification.
Large identification jaws for all kinds of cables.
Extremely simple to operate.
Clear and intuitive instructions.
The main and auxiliary parts are portable and beautiful.
The receiver receives signal strength adjustable. Both live and non-live cables can be tested.
Compact and portable, light weight.
| Identification method |
to judge the direction of the hand swing |
| Clamp |
Φ125mm |
| Output voltage |
Gear I (direct connection method) : 250V , Grear II (coupling method) : 600V; |
| Test range |
Direct connection method: 0Ω ~ 1.5k , Coupling method: 0Ω ~ 40Ω; |
| Pulse current |
0 ~ 15A; |
| Pulse period |
2.5S/ time; |
| Power supply |
transmitter 12VDC lithium battery, handheld receiver No. 5 battery. |
PACKING LIST
| Serial number |
Name |
quantity |
|
1
|
Transmitters |
1 |
|
2
|
Receivers |
1 |
|
3
|
Charger |
1 |
|
4
|
Output line-red |
1 |
| 5 |
Output line-black |
1 |
| 6 |
Launcher |
1 |
| 7 |
Receiver clamp |
1 |
| 8 |
5A battery |
2 |
