XHCC8/15
Overview

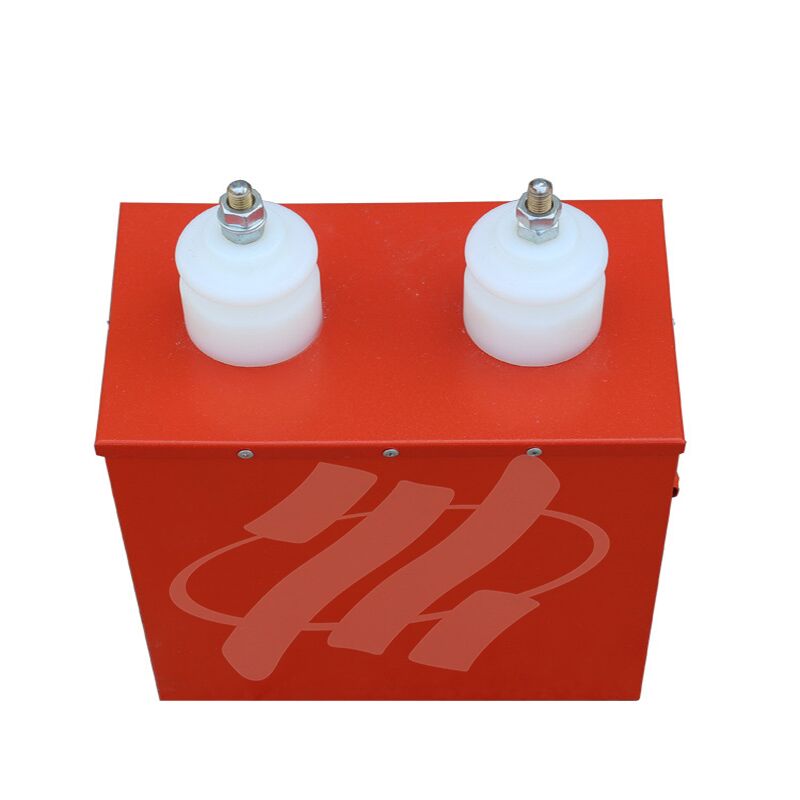

Crafted with imported film and a non-inductive winding design, our pulse energy storage capacitors offer superior self-healing capabilities and explosion protection. Key advantages include robust reliability, zero leakage, eco-friendly operation, moisture/fire resistance, extended lifespan, and a compact, lightweight form factor.
Applications
Designed to store energy from low-power sources over set intervals, our pulse energy storage capacitors deliver instantaneous, high-power impulse current by releasing stored energy in microseconds. Ideal for high-voltage impulse testing, high-energy physics research, oscillating circuit systems, geological exploration, and more industrial applications.
Technical Parameters
Ambient Temperature: -20～+50℃;
Altitude: ≤2000 meters, altitudes above 2000 meters will be specified separately;
Capacitor Tolerance: ±5%;
Rated Capacitance: 8uF
Rated Voltage Rating: 15kV
Precautions and Common Faults
1. Do not impact or knock the pulse energy storage capacitor, as this may damage the internal film.
2. When using the pulse energy storage capacitor, please read the instruction manual and capacitor label to prevent overvoltage use.
3. During use, pay attention to the voltage withstand capability and safe distance of the connecting wires.
4. After the test, the high-voltage end must be fully discharged first.
5. If abnormal noise occurs inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If bulges or protrusions appear on the capacitor casing, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.
After-Sales Service The instrument is covered by a one-year free warranty for product quality issues from the date of purchase, and lifetime maintenance and technical services are provided. If you find that the instrument is malfunctioning or has any faults, please contact us promptly so that we can arrange the most convenient and effective solution for you.
If you are interested in this type of equipment, please feel free to contact us. We also accept customized services.
